Adjustable Pressure Regulator with Gauge; 20mm Compression Output Fitting.

3/4" BSP input port - 20mm compression output fitting to 20mm polytube, (supply) pipe.

This is an adjustable pressure regulator with a working range between 0.7 - 2.2bar.  Pressure gauge fitted is 0-4bar and is glycerine-filled.   This unit also has a 20mm compression output fitting to allow you to attach it to 20mm LDPE Black polytube and 20mm MDPE Blue Polypipe.    There is an option for 16mm compression.  Please ask us if you need this.

These submergible valve boxes are designed to be dug into the ground and have green twist down lids. They will protect and conceal underground pipes, valves and control equipment.

PLEASE do NOT place battery timers within these valve boxes as they can get damp.

They are available in following sizes:

• Small, round - 20cm diameter, 23cm deep
• Large, round - 33cm diameter, 25cm deep

25mm Compression Elbow Fitting

25mm compression elbow for permanent, secure, leak-free 90degree turns in 25mm black LDPE supply polypipe and blue MDPE pipe.

Secure connection, seals on the external surface of pipe.
Fits 25mm black LDPE supply polypipe click here to buy

25mm Compression Tee to LeakyPipe connector.
(1 or 2 LeakyPipe output options)

Connect 25mm blue 'mains' pipe to 1 or 2 outputs of LeakyPipe.

Use these fittings where the water is supplied to the garden in 25mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe.

The following outputs are available:

12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output

Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.

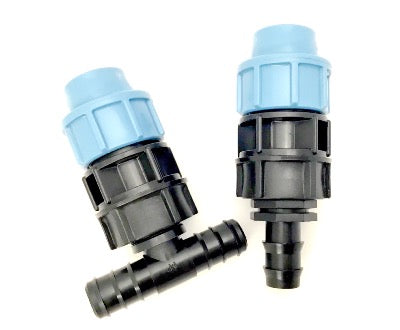

20mm Compression Tee Fitting with 16mm barbed connection to LDPE black polytube. (1, 2 output options)

Tee into a line of 20mm blue 'mains' MDPE pipe to one or two 16mm black polytube "supply” pipes.   Just select which you need.

Use these compression fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The output end is a barbed fitting which simply pushes onto the 16mm black LDPE polytube, that will carry the water further into your system..

Available with one or two outputs - select from the menu above.
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.

The following outputs are also available.

12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output

High Quality Unidelta brand


Filter and Pressure Reducing Valve Set.

(Filter cartridge and brass connectors included)

A pre-assembled filter and pressure regulator kit with options of input / output fittings.

This kit is ideal if your water source is unclean e.g. borehole and the pressure either too high or erratic.  The unit is preassembled and you just need to connect it into your system, using either brass 'snap' fittings, 16mm or 20mm compression fittings, depending on the non-porous supply pipe you are using. Water goes through filter first, then the pressure reducing valve.

Includes a 10" long pleated filter which can easily be removed for cleaning or replacement. A commercial grade filter which filters down to 22micron.

Make sure it stays free of frost, so drain it out for overwintering.

Includes bracket to mount the unit on a wall or fence (fixings not provided) and spanner to tighten the body of the filter onto its top.

Filter Housing - 10inch clear body

Cartridge, wall mount and bowl spanner included.

Filter housing body with cartridge, wall mount and bowl spanner.

This filter housing can be connected into your water supply if the water source is not clean e.g. from bore hole or storage tank. A filter will prevent any dirt particles entering the LeakyPipe which could eventually lead to a blockage. It is not necessary for normal household garden taps on mains connection.

This filter contains a 10" pleated cartridge thus ensuring the best protection.  It catches particulate down to 22micron.

It has brass lined 3/4" female BSP entry / exit ports.

The cartridge can be easily removed for cleaning.

Make sure it stays free of frost, so drain it out for overwintering.

The wall mount does not contain fixings as you will need to select these to be suitable for brick / wood etc.

A discounted kit for watering raised borders, raised troughs or planters with a total area of up to 125sqm. Create a professional finish with all pipework concealed during construction of the beds. Kits are customisable for the number of raised beds and size of supply pipe. A Kit created for landscape constructors to incorporate watering facilities during the construction of raised beds or planters. The Kits comprises professional leak-free compression fittings and sufficient LeakyPipe to irrigate up to 125m2 of raised beds, planters or troughs.  This kit is designed to be installed at the construction stage of creating raised beds. The fittings allow water to be brought up inside the bed or planter via a 'riser' to the surface of the soil.

This gives a neat, clean professional look. The 'network' or supply pipe is best created with 20mm or 25mm blue MDPE pipe. The blue pipe isn't included in the kit, but a tee and elbow compression fittings are included to help you create the network. Once at soil level, an elbow fitting allows LeakyPipe to be laid on the surface or covered in mulch which helps water to wick away from the LeakyPipe. Arrange the LeakyPipe around the plants. Moisture spreads outwards for about 12 inches / 30cm either side. The free ends of the LeakyPipe are sealed with the included 'plugs'.

In planning your system, think about how you want to create a network of supply pipe to carry water to each of the beds. 20mm or 25mm blue MDPE pipe is ideal for burying underground. MDPE pipe isn't included in this kit, but a tee and elbow compression fittings are included to help you create the network.  Also included is a fitting to connect to your water source - options here include a compression-3/4" adaptor to create a leak-free connection with the bottom of a timer or 3/4" tap thread OR a compression to HoseSnap fitting to allow quick hook-up to standard HoseSnap fittings on normal garden hosepipe.

This Kit includes a 250m roll of LP12H LeakyPipe, which is designed to be ideal for general purpose watering, working up to 50metres from the barbed connections.  It has proven to last in excess of ten years.

How to customise your kit.

1. Select the number of raised beds you have
2. Select the supply pipe size you intend to use. The fittings will be adjusted to ensure they are compatible with your selection.
3. Choose a hook-up option, dependent on how you plan to feed water into the pipework.
4. Double check the total area of your beds do not exceed 125m2 - this will ensure that 250m of LeakyPipe at 50cm spacing is sufficient for your beds.

Items included:

• 250m roll of LeakyPipe LP12H Porous Rubber Hose.
• 1  of 20/25 compression to 3/4" female fitting OR 20/25 compression to HoseSnap fitting
• 2  of 20/25 compression tee.   (for branching of supply network)
• 2  of 20/25 compression elbow.  (for riser within terminal bed)
• 5  of 12-12 connectors.  (To connect Leaky-Leaky, a useful repairer).


Each bed will get an additional set of:

• 1 of 20/25 compression tee. (To branch supply pipe up as a riser within each bed)
• 1 of 20/25 compression elbow to LeakyPipe tee (To allow connection to 2 LeakyPipe lengths within each bed)
• 2 of 12 plugs (to seal the end of LeakyPipes)

Imagine this.   Firstly, find a way of running the Supply Pipe onto all the places you wish to water.  Use the compression fittings to tailor the pipe to give you a "Distribution Network" to carry the water to each raised bed. Compression tee under each bed will allow creation of a 'riser' to bring the water to the surface of the soil.  Here you will be connecting the Leaky Pipes via the compression elbow.  Run the LeakyPipe near to the plants, - (within 30-50cm as the water will spread laterally) and plug the ends. (See this Video about fittings).




50m Roll of LeakyPipe LP12EQ Equestrian Arena System repair kit

Manufactured by us, here in Kent, to ensure very high standards, for specific, sub-surface use in Equestrian Sand Constructions . Ensured thirty year plus Life, this is a very specific, very carefully manufactured product of the highest quality.

LeakyPipe®LP12EQ 50m Roll for Repair & Maintenance of Sub-Surface Networks in Riding Arenas, Gallops & Menages.

10 of 12-12 barbed connectors included.

Cut and splice into your existing system, as needed.

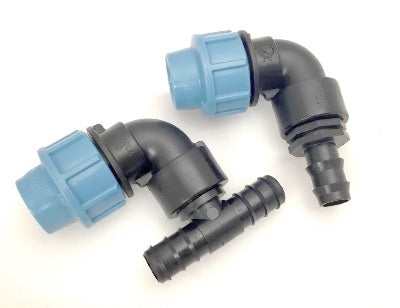

20mm Compression Elbow to 20mm barbed connectors.
(1 or 2 output options)

Connect 20mm blue 'mains' pipe to 1 or 2 outputs of 20mm supply pipe.

Use these fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto 20mm supply polypipe.

The following outputs are available:

12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output

Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.

Ingenious, time saving, Travelling Lawn Sprinkler by Nelson

Self-propelled, Travelling Sprinkler System for large gardens and areas of grass.

Made by Nelson. Improved by us.

This is a great tool made in the USA by Nelson. It's useful to those who have a large area of lawn & desire an easy and cheap way of watering it without too much effort. Look no further! It's a garden sprinkler that moves itself.
